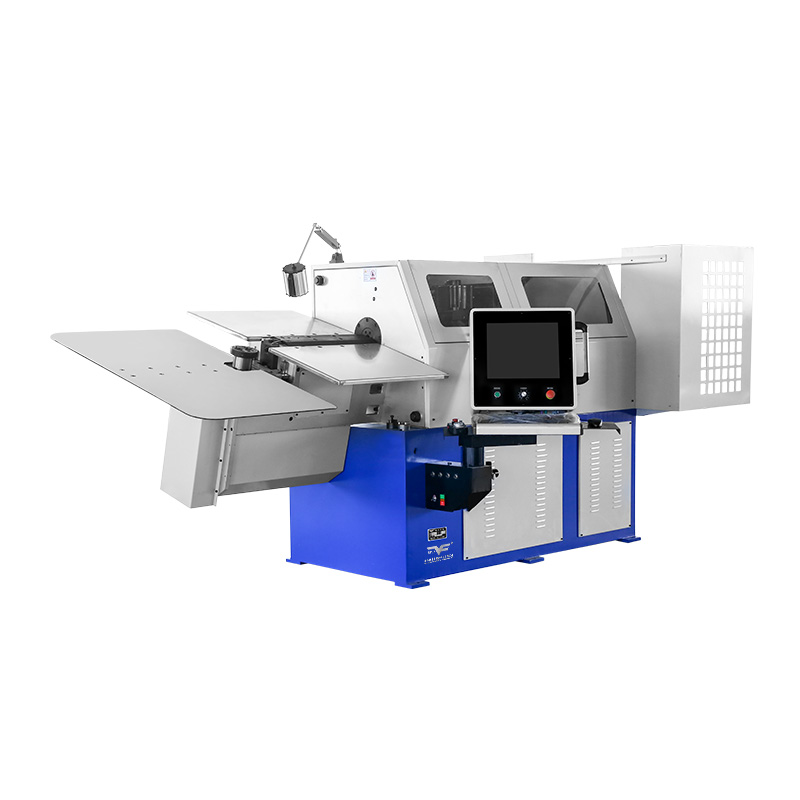

CNC-YF-7-80 3D CNC Wire Bending Machine

CNC-YF-7-80 3D CNC Wire Bending Machine

CNC-YF-7-80 3D CNC Wire Bending Machine

The lifting platform ensures stability when bending long wire materials into shaped products.
The bending mechanism accommodates bends at different R positions, with a large forming space suitable for the production of long products.
Three sets of wire-feeding wheels ensure a wire-feeding accuracy of ±0.1mm within a range of 280mm.
Seven sets of straighteners in both longitudinal and transverse directions ensure the straightness of wire feeding.
The CNC system supports multiple languages, making it easy to learn and operate.
The wire winding reel straightens the wire materials, facilitating stable and effortless production.
Safety protective cover.

Specification

Model YF-780 YF-7120
Wire diameter Φ3mm-Φ8mm Φ3mmΦ8mm iron wire Φ4mm-Φ12mm Φ4mm-Φ12mm iron wire
Axdes number 7 axles 7 axdes
Wire Feed length Infinite Infinite
Wire Feed speed 100Meter/Min 100Meter/Min
Wire Feed instruction value ±0.01-±9999.99 ±0.01-±9999.99
Cam instruction value ±0.1°-359.9 ±0.1°-359.9°
Wire feed shaft servo power 2.7KW 7.5KW
Wire-switching shaft servo power 2.7KW 4.5KW
Torslon shaft servo power 1.2KW 5.5KW
Lifting platform servo power 0.75KW 2.7KW
Cut shaft servo motor 0.75KW 2.7KW
Torsion lifting platform servo power 0.75KW 2.7KW
Core-switching shaft servo power 1.2KW 5.5KW
Machine weight 2800KG 3800KG
Machine sizes 3800×1900×1850mm 4250×2000×1900mm

Explanation

Advantages:
computer startup, shutdown speed is fast, simple, and convenient to operate, supports multi-language operation, the computer interface can adjust the speed and change the program at the same time of production;
the configuration of the use of imported high-precision high-speed servo motor, imported reducer, stable and durable production speed is more than 30% higher than the domestic counterparts of the same kind of products;
The production process can achieve no change in the Angle when the Angle is folded at different speeds, and the production stability is better;
Bearings, gear, and other important parts of the imported parts, 9125 hours of warranty, durable and reliable equipment;
High precision, can be made within the range of 2.0-14 mm wire diameter wire molding products, the error is reduced to 0.1mm;
good after-sales service system: provide technical training support free of charge! Equipment lifetime maintenance.

Product Details:
Advanced 3D Molding Capability
At the heart of this machine lies its 3D molding capability, allowing users to create intricate wire shapes with ease. Whether it's simple curves or complex geometric designs, the 3D CNC Wire Bending Machine excels in producing precise and accurate bends, ensuring consistency across every piece.

Versatile Functionality
One of the key features of the 3D CNC Wire Bending Machine is its versatility. Equipped with a 7-axis servo control, it offers unparalleled flexibility in controlling wire movements from multiple angles. Whether users require synchronized control for intricate designs or single-axis control for simpler tasks, this machine adapts seamlessly to various production needs.

Efficient Feeding System
Efficiency is paramount in industrial settings, and the feeding system of the 3D CNC Wire Bending Machine is designed with this principle in mind. With 3-4 pairs of feeding rollers and a feeding motor fixed on the bottom base, the machine ensures swift and stable wire rotation. By reducing the weight of the feeding box, it optimizes performance, enabling faster production cycles without compromising on quality.

Maintenance:
Correct installation and placement
After the machine is placed in the workshop, the need for sufficient ground grounding, manufacturers in the process of transportation, there is a board at the bottom, the need to take the board off, pad rubber pad, the purpose of this is to prevent wire molding machine production process, not due to the machine running vibration.
Add oil and butter regularly.
Refueling position is mainly curly, wire box, transmission gear, and other places, long-term maintenance of the wire forming machine part of the running in place of oil lubrication, generally a week to check the butter.
Keep the machine clean.
Every day before work, the staff need to clean the surface of the wire-forming machine. If it is not cleaned for a long time and oil accumulates, there will be the possibility of changing the circuit parameters, and long-term erosion of dust, so that the machine surface aging, affecting the appearance.
Normal operation and use
Special care should be taken not to produce products beyond the line diameter range, so as not to reduce the accuracy of the equipment. The machine should be placed in a ventilated and dry place to prevent moisture from rusting or damaging the circuit. Can achieve timely and careful maintenance of the machine, can maintain the precision and stability of the wire molding machine, extend the service life, and also can reduce the repair rate of the machine.
