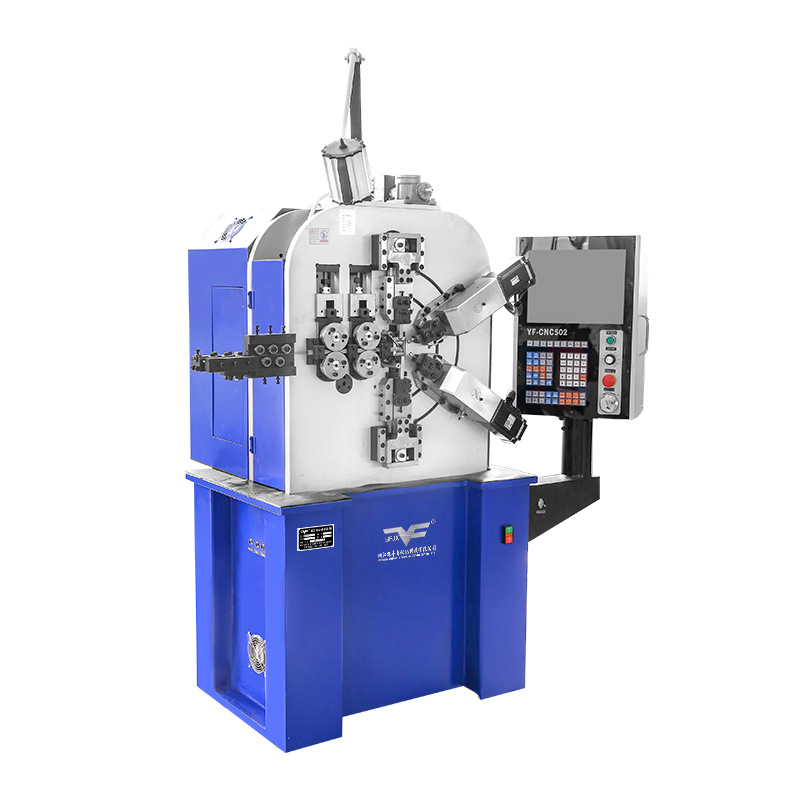

Procurement of computer control systems and servo motors imported from Taiwan;
The computer has Chinese interface, easy to operate, accurate positioning, the computer can control three to eight servo motors, all motors can run synchronously or independently;
It is equipped with precision detection and tracking system. If there are unqualified products, the machine can stop automatically;
According to the working conditions on the fluorescent screen, the outer diameter Angle of the product can be corrected at any time;
Automatic lubrication and oil supply design for automatic mechanical parts to ensure the long-term operation of the equipment;
When the wireless, wire breaking, winding automatic stop design and wire frame automatic acceleration function, so that the production more easily and effectively;
Suitable for the production of straight spring, pagoda spring, car spring, damping spring and other high requirements of the spring.
Springs are commonly used components in industry. They are used in a variety of products, from airplanes and warships to mobile phones and cameras. Therefore, the production of springs has a history of hundreds of years. The original springs were just cylindrical tension and compression springs, which were wound manually. The technology was relatively immature and the production efficiency was relatively low. It was very difficult to produce large springs for heavy equipment such as trains or tanks.
With the increase of industrial products, spring products have also become richer, including various special-shaped springs such as tower-shaped (commonly known as battery springs) springs, double torsion springs, etc. In this way, many winding molds must be made using conventional manual methods. One spring requires 3 to 8 processes to complete, or even more processes, and the product stability is good.
| Technical Parameters | |||
| Axles number | 6 axles | Cutter servo power (1) | 1.2KW |
| Wire diameter | 1.0-3.0mm | Cutter servo power (2) | 1.2KW |
| Max outside diameter | 50mm | Wire feed servo power | 4.5KW |
| Max production rate | 230 pcs/min | Pitch axis servo power | 0.4KW |
| FeedCylinder probe | 2 sets | Power supply | Three phase 380v |
| Outside diameter servo power (1) | 0.75KW | Machine weight | 800Kg |
| Outside diameter servo power (2) | 0.75KW | Machine sizes | 1500×1000×1800mm |
